Water cooled condenser shell & tube type with Seamless tubes
-
With Finned Carbon steel, SS 304/SS 316 (Optional on request)
-
With Highly efficient high heat transfer tubes in copper (for refrigerant other than Ammonia)
-
With SS 304 / SS 316 (Optional on request)
-

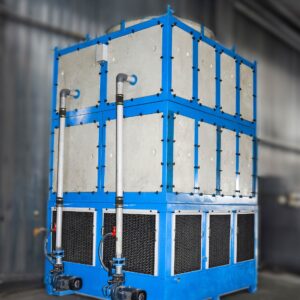

Evaporative condenser having coil bundle in SS 304 / SS 304L, SS 316/SS316L tubes (mainly for Ammonia refrigerant)
-

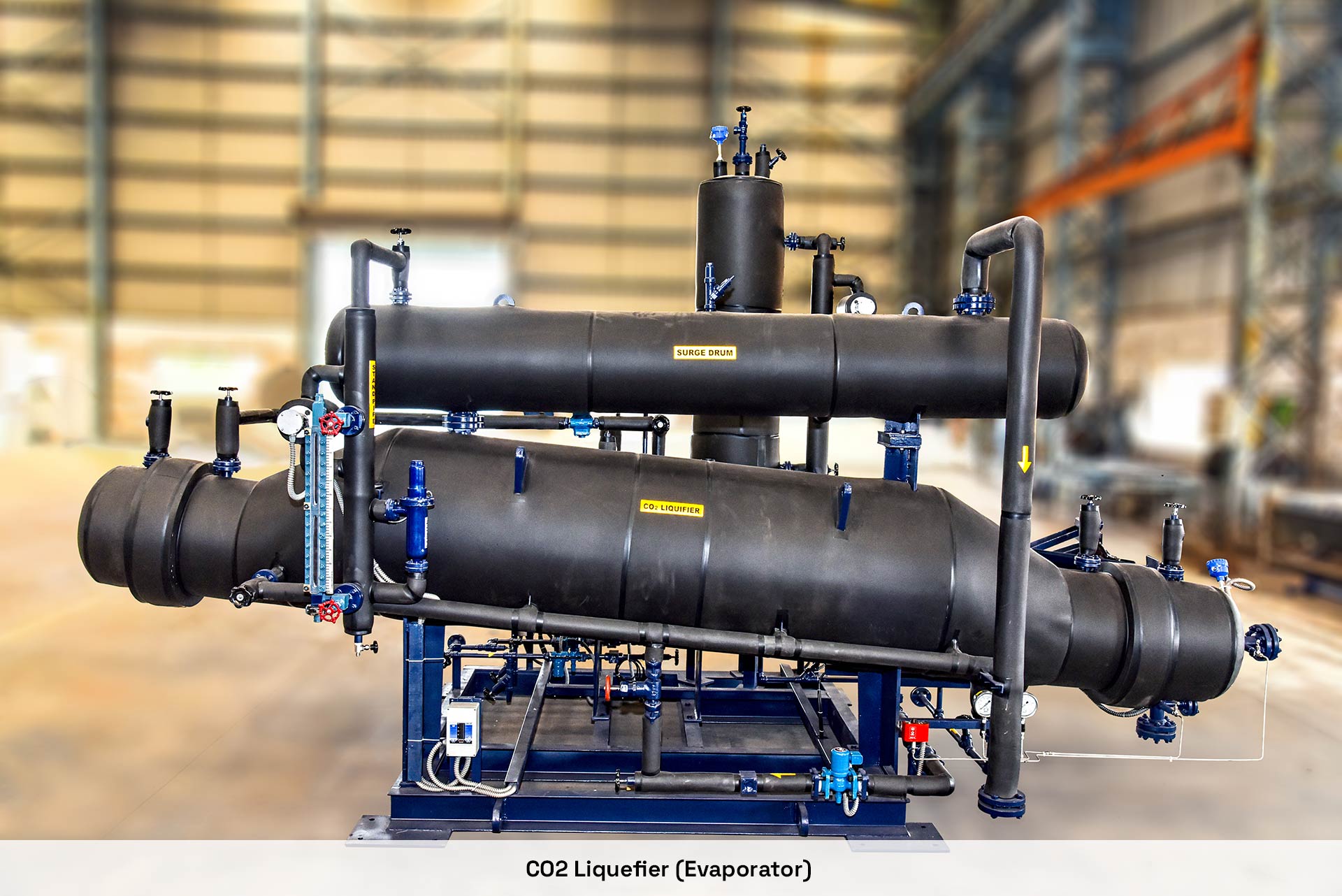

Evaporator (Liquefier) shell & tube: Flooded, DX type With Highly efficient high heat transfer tubes in copper (for refrigerant other than Ammonia) for low refrigerant charge.
-
With Carbon steel, SS 304/SS 316 (Optional on request)
-
Skid and equipment duly sandblasted and painted
-
Totally Factory built self-contained, compact skid mounted ready to commission
-

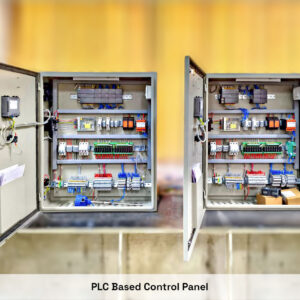

Reputed PLC / Microcontroller based user friendly control panel, necessary safety interlocks and auto manual operation of the chiller.
-
Compressor drive motor starter panels: Star-Delta, Soft starter, VFD with reputed switch-gears makes, VFD with Star Delta / Soft starter by-pass to eliminate the downtime of the system.
-
Instruments & controls of reputed makes as per Industry standards
